Redirect to E-Wallet

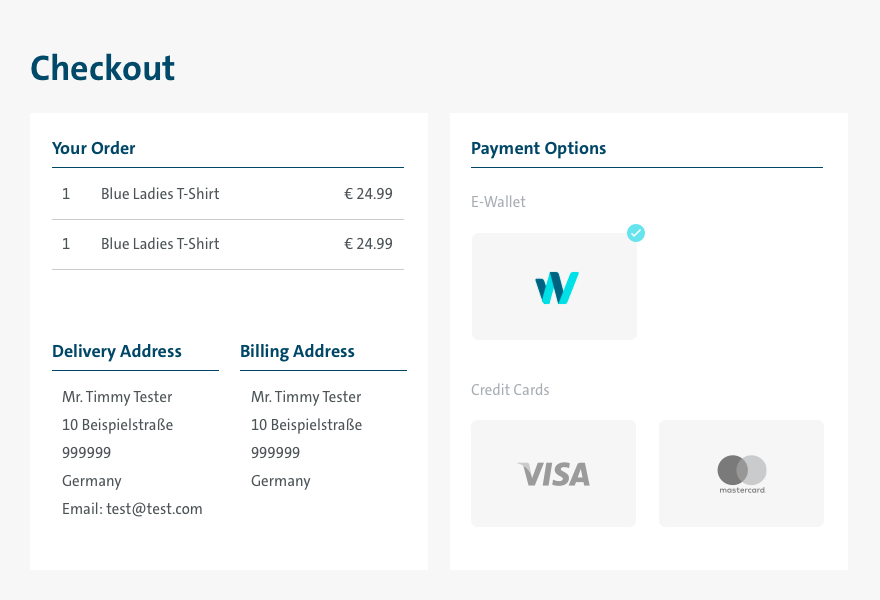

The payment process starts with the customer choosing to pay with an E-Wallet account on your checkout page.

Please ensure to format all numbers using the user's browser locale. For example, a user with en-US will use a "dot" as the decimal separator, whereas de-DE shall be interpreted using a "comma" as the decimal separator.

The "E-Wallet"-button sends a POST request containing a hidden form content and navigates the customer's browser away from the Merchant to the E-Wallet Portal, where the customer securely completes the payment. This is done without any prior user authentication with the E-Wallet, or API User authentication with the KontoCloud Web API.

To ensure high level of trust between the user and the chosen payment method, the user should see that they have been securely navigated away to the E-Wallet Portal. Therefore, framesets or iFrames that obscure this redirection should not be used.

The hidden form content contains various payment information such as the "merchantAccno" and the "orderItems". The example below shows the hidden form for a standard payment of one "Ladies T-Shirt" for 25.00 € and one "Ladies Pants" for 55.00 €.

Hidden Form Example

<form action="https://{E-Wallet-Portal-Base-URL}/Payment" method="post">
    <input name="callBackUrl" value="http://example.com/Checkout/Confirmation" type="hidden">
    <input name="merchantTransactionId" value="CHECKOUT-Kl3n9Sdw54pf" type="hidden">
    <input name="paymentType" value="Standard" type="hidden">
    <input name="merchantAccno" value="MERCHANT-DE4321" type="hidden">
    <input name="currencyCode" value="EUR" type="hidden">
    <input name="orderItems[0].description" value="Ladies T-Shirt" type="hidden">
    <input name="orderItems[0].price" value="25,00" type="hidden">
    <input name="orderItems[0].count" value="1" type="hidden">
    <input name="orderItems[1].description" value="Ladies Pants" type="hidden">
    <input name="orderItems[1].price" value="55,00" type="hidden">
    <input name="orderItems[1].count" value="1" type="hidden">
    <div>
        <button>Pay With E-Wallet Account</button>
    </div>
</form>

info

The "callbackUrl" must be provided to our Product Solution Specialist in order to be whitelisted.

info

As earlier mentioned, the decimal separator must be conform to the customer's browser locale. A "de-DE" locale setting requires a comma as decimal separator (see parameter "orderItems.price" in the example above).

info

It is important to distinguish between the two payment types "Standard" and "BlockAmount" (see parameter "paymentType"). A standard payment directly debits the specified amount from E-Wallet account and credits it to the Merchant Account, whereas a blocked payment solely blocks the amount for a later Release. Further details are provided in the following section Customer Payment.

The table below shows a detailed description of all possible parameters.

Parameter	Mandatory	Description	Data Type	Length
callbackUrl	yes	URL to the page were the User must be redirected after the Payment. This must be communicated previously to our Product Solution Specialist in order to be whitelisted.	String	255
merchantTransactionId	yes	Identifier of the Payment inside the Merchant System.	String	64
paymentType	no	Type of the payment. The following values are valid: "Standard", "BlockAmount". If no value is posted, then "Standard" is used as the default one.	String	15
merchantAccno	yes	Merchant Account Number.	String	255
currencyCode	yes	Payment Currency Code.	String	3
orderItems: description, price, count	yes	List of the Payment Order Description of the Position Price per Position Item Count of Position Items.	Array: String, Decimal, Numeric	255, 18/2, 5
emailAddress	no	Customer Email Address.	String	255
title	no	Customer Title.	String	2
firstName	no	Customer First Name.	String	100
lastName	no	Customer Last Name.	String	100
dob	no	Customer Date of Birth	YYYY-MM-DD	10
countryCode	no	Customer Country ISO2 or ISO3 Code.	String	3
street	no	Customer Street.	String	60
houseNumber	no	Customer House Number.	String	10
city	no	Customer Street.	String	50
state	no	Customer State.	String	50
postcode	no	Customer Postal Code.	String	10
mobilePhone	no	Customer Mobile Phone.	String	30
